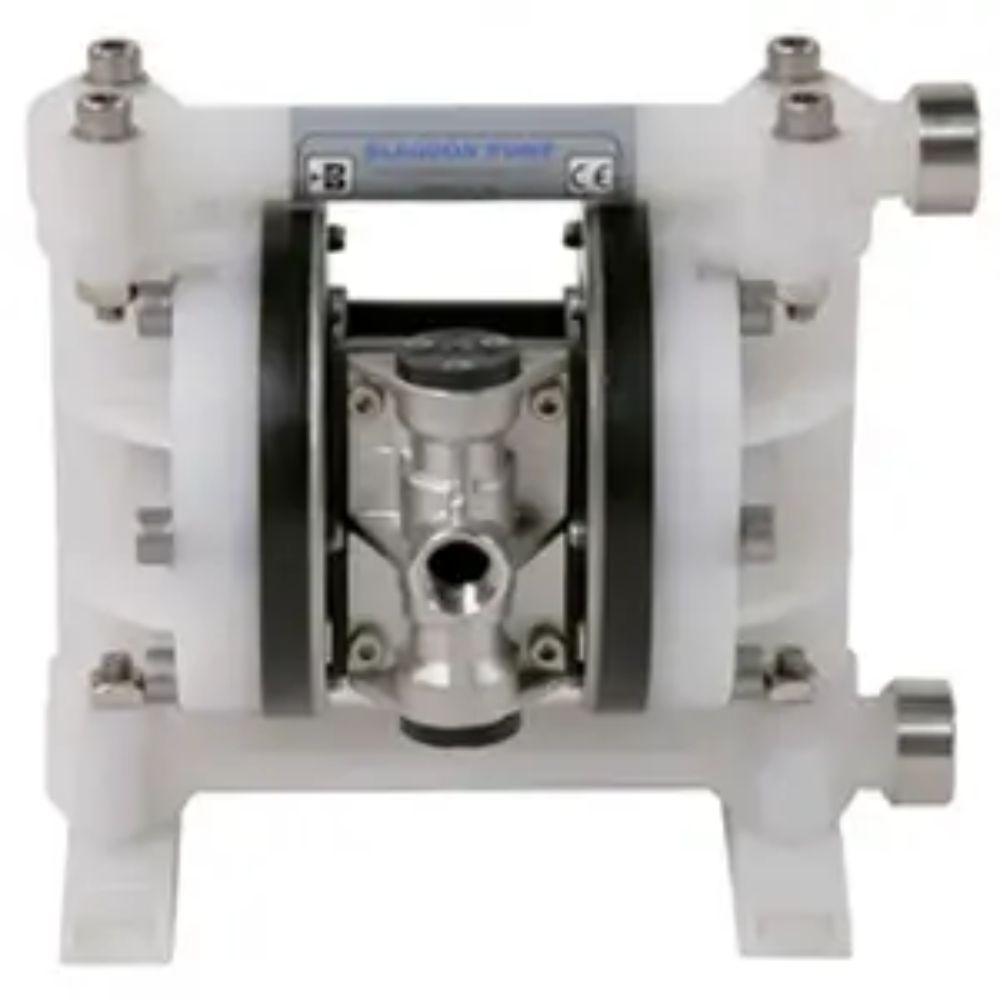

B06 Non-Metallic
B06 Non-Metallic - Image 2
B06 Non-Metallic - Image 3

B06 Non-Metallic

  • Simple construction, easy to maintain
  • Self-priming, ideal for empting containers
  • Pressures to 5 bar (73 PSI)
  • Flow rates up to 16 litres/minute (4.3 gal/min)
  • Bolted construction for safety
  • Low break out pressure requirement
  • Reliable pneumatic air valve system

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

  • Maximum Delivery 16 ltrs/min (4.3 gal/min)
  • Max. Working Pressure 5 bar (73 PSI)
  • Max. Solid Particle Size 1 mm. (0.04″)
  • Air Inlet 1/4″ NPT
  • Temperature Limits Determined by Elastomers
  • Suction Lift (Dry) 1.5 metres (4.9 feet)
  • Suction Lift (Wet) 4.1 metres (13.5 feet)
  • Fluid Inlet / Outlet 1/4″ BSP / NPT
  • Installation Wall or surface mounted
  • Accessories Included Exhaust Air Silencer
  • Shipping Weight 1.7 kg. (3.8 lbs) polypropylene 1.9 kg. (4.2 lbs) PVDF
  • Shipping Dimensions 240 x 180 x 200 mm 9.5″ x 7.1″ x 7.9″
