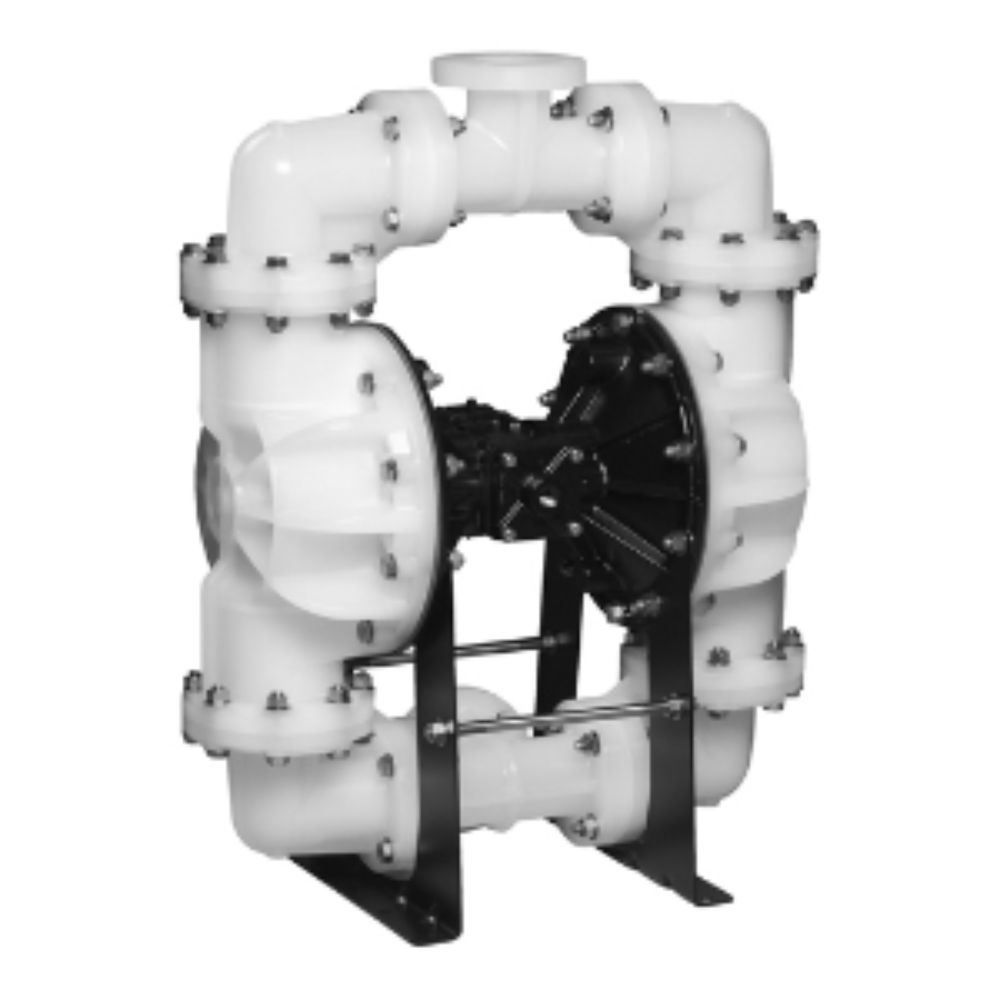

B75 Non-Metallic
B75 Non-Metallic - Image 2
B75 Non-Metallic - Image 3

B75 Non-Metallic

  • Simple construction, easy to maintain
  • Capable of handling high-S.G. and viscous fluids
  • Pressures to 7 bar (102 PSI)
  • Flow rates up to 901 litres/minute (238 gal/min)
  • Adjustable flanged connections
  • Reliable, proven pneumatic air valve

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

  • Maximum Delivery 901 ltrs/min (238 gal/min)
  • Max. Working Pressure 7 bar (102 PSI)
  • Max. Solid Particle Size 18 mm. (0.71″)
  • Air Inlet 3/4″ NPT
  • Temperature Limits Determined by Elastomers
  • Suction Lift (Dry) 5.1 m. (16.8′ feet)
  • Fluid Inlet / Outlet 3″ ANSI Flange
  • Installation Surface Mounted
  • Accessories Included Exhaust Air Silencer
  • Shipping Weight 105 kg. (231.5 lbs) Polypropylene 143 kg. (315.3 lbs) PVDF
  • Shipping Dimensions 558 x 965 x 1219 mm 22″ x 38″ x 48″
