3/8″ & 1/2″ Fluid Ports

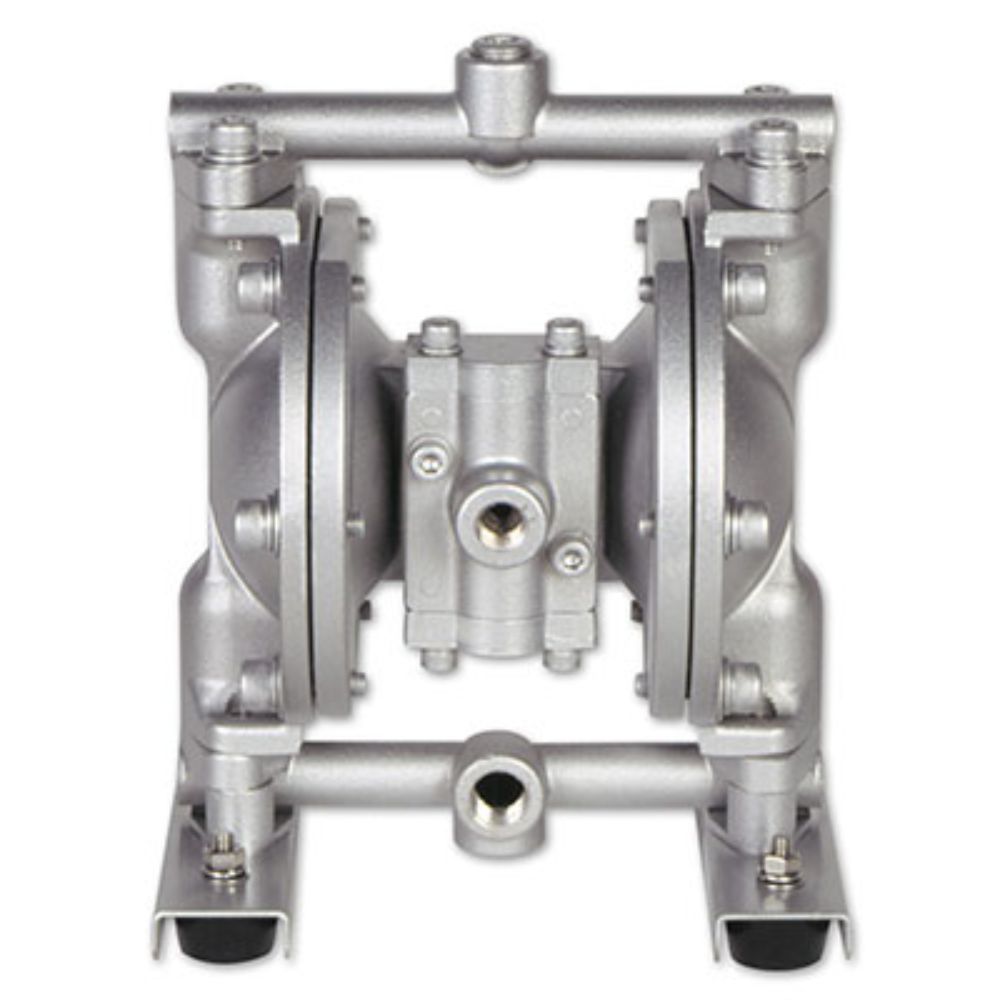

DP-10 series 3/8″ AODD pumps provide a maximum flow rate of 6 GPM and are available in Aluminum, Stainless Steel (316) and Polypropylene.

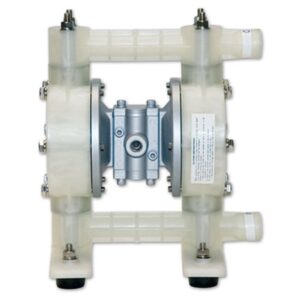

DP-15 series 1/2″ AODD pumps provide a maximum flow rate of 7.4 GPM and are available in Polypropylene and Groundable Acetal.

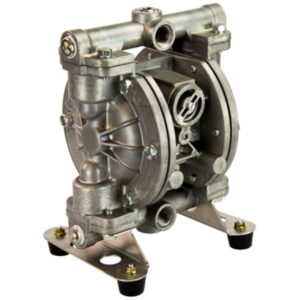

G15 Global Series 1/2″ AODD pumps provide a maximum flow rate of 16.6 GPM and are available in Aluminum, Stainless Steel (316), Pure Polypropylene and Kymar.
We offer a wide selection of diaphragm materials that cover a variety of applications.
The NDP series pumps utilize a C-Spool.
What separates Yamada from the rest of the pack is our air valve technology. Yamada NDP series pumps use a completely non-lubricated main air valve and independent pilot mechanisms to control the air logic.
As compressed air enters the pump, it is directed via the main air valve to one side or the other, depending upon the starting position of the c-spool. As the air enters the chamber, it forces the diaphragm outward. This outward momentum forces liquid out of the discharge ball valve and loads the opposite inlet ball valve. As the diaphragm travels outward, the connected diaphragm on the opposite side is pulling the diaphragm inward.
When it travels a full stroke, it will contact the pilot valve, depressing it and breaking the seal to open an exhaust port.
The open port allows the compressed air to the exhaust from the back side of the air valve. The pressure drop produces a shift of the main air valve. This motion simply repeats on the other side.
The Global Series pumps utilize a Step Spool (S-Spool).
Yamada Global Series pumps do not have an independent pilot valve system (less parts) and consume less air versus the competition. Available with multiport options, these AODD pumps perform extremely well in continuous stop/start operations and provide exceptional suction lift.
Literature & Drawings
DP-10 SPECIFICATIONS
| Fluid Port |
3/8″ NPT |
| GPM |
6 |
| Discharge Volume Per Cycle |
0.020 Gallons |
| Air Motor |
Aluminum |
Intake & Discharge Connections
| Polypropylene (PPG) |
3/8″ Female NPT |
| Aluminum (ADC-12) |
3/8″ Female NPT |
| Stainless Steel (316) |
3/8″ Female NPT |
| Air Inlet |
1/4″ Female NPT (includes ball valve) |
| Air Exhaust |
3/8″ Female NPT (includes silencer) |
DP-15 SPECIFICATIONS
| Fluid Port |
1/2″ NPT |
| GPM |
7.4 |
| Discharge Volume Per Cycle |
0.027 Gallons |
| Air Motor |
Aluminum |
Intake & Discharge Connections
| Polypropylene (PPG) |
1/2″ Female NPT |
| Aluminum (ADC-12) |
1/2″ Female NPT |
| Groundable Acetal |
1/2″ Female NPT |
| Air Inlet |
1/4″ Female NPT (includes ball valve) |
| Air Exhaust |
3/8” Female NPT (includes silencer) |
G15 SPECIFICATIONS
| Fluid Port |
1/2″ Female NPT |
| GPM |
16.6 |
| Discharge Volume Per Cycle |
0.039-0.050 Gallons |
| Air Motor |
Polypropylene (G15 plastic), Aluminum (G15 metal) |
Intake & Discharge Connections
| Pure Polypropylene (PP) |
1/2″ Female NPT |
| Kynar® |
1/2″ Female NPT |
| Aluminum (ADC-12) |
1/2″ Female NPT |
| Stainless Steel (316) |
1/2″ Female NPT |
| Air Inlet |
1/4″ Female NPT |
| Air Exhaust |
3/8” Female NPT |
Diaphragm Maximum Liquid Temperature*
| N: Buna N |
180°F (82°C) |
| C: Neoprene |
180°F (82°C) |
| S: Santoprene® (TPO) |
180°F (82°C) |
| E: EPDM |
212°F (100°C) |
| T: PTFE |
212°F (100°C) |
| H: Hytrel® (TPEE) |
248°F (120°C) |
| V: Viton® fluoroelastomer |
248°F (120°C) |
| U: Ultimate |
212°F (100°C) |
| *The maximum liquid temperature for metal and Kynar® fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. |
Additional Specifications
| Air Supply Pressure |
20-100 PSI |
| Max. Cycles Per Minute |
379 (pumps vary) |
| Max. Size Solid |
1/32″ (1mm) |
| Max. Dry Suction Lift |
13.5′ (pumps vary) |
:: Aluminum (DP-10)
|
| Dimensions: |
7.32″ W × 9.49″ H |
| Net Weight: |
7.7 lbs. (3.5 kg) |
| Shipping Weight: |
9.7 lbs. |
:: Polypropylene (DP-10)
|
| Dimensions: |
7.68″ W x 7.72″ H |
| Net Weight: |
6.6 lbs. (3.0 kg) |
| Shipping Weight: |
8.6 lbs. |
:: Polypropylene (DP-15)
|
| Dimensions: |
9.69″ W x 11.69″ H |
| Net Weight: |
7.7 lbs. (3.5 kg) |
| Shipping Weight: |
9.7 lbs. |
:: Stainless Steel (DP-10)
|
| Dimensions: |
7.13″ W × 9.37″ H |
| Net Weight: |
11.5 lbs. (5.2 kg) |
| Shipping Weight: |
13.5 lbs. |
:: Groundable Acetal (DP-15)
|
| Dimensions: |
9.69″ W x 11.69″ H |
| Net Weight: |
7.7 lbs. (3.5 kg) |
| Shipping Weight: |
9.7 lbs. |
:: Aluminum (G15)
|
| Dimensions: |
7.64″ W x 10.43″ H |
| Net Weight: |
11.9 lbs. (5.4 kg) |
| Shipping Weight: |
15 lbs. |
:: Stainless Steel (G15)
|
| Dimensions: |
7.64″ W x 10.43″ H |
| Net Weight: |
18.1 lbs. (8.2 kg) |
| Shipping Weight: |
22 lbs. |
:: Pure Polypropylene (G15)
|
| Dimensions: |
8.58″ W x 11.25″ H |
| Net Weight: |
5.74 lbs. (2.6 kg) |
| Shipping Weight: |
9 lbs. |
:: Kynar (G15)
|
| Dimensions: |
8.58″ W x 11.25″ H |
| Net Weight: |
7.72 lbs. (3.5 kg) |
| Shipping Weight: |
12 lbs. |
