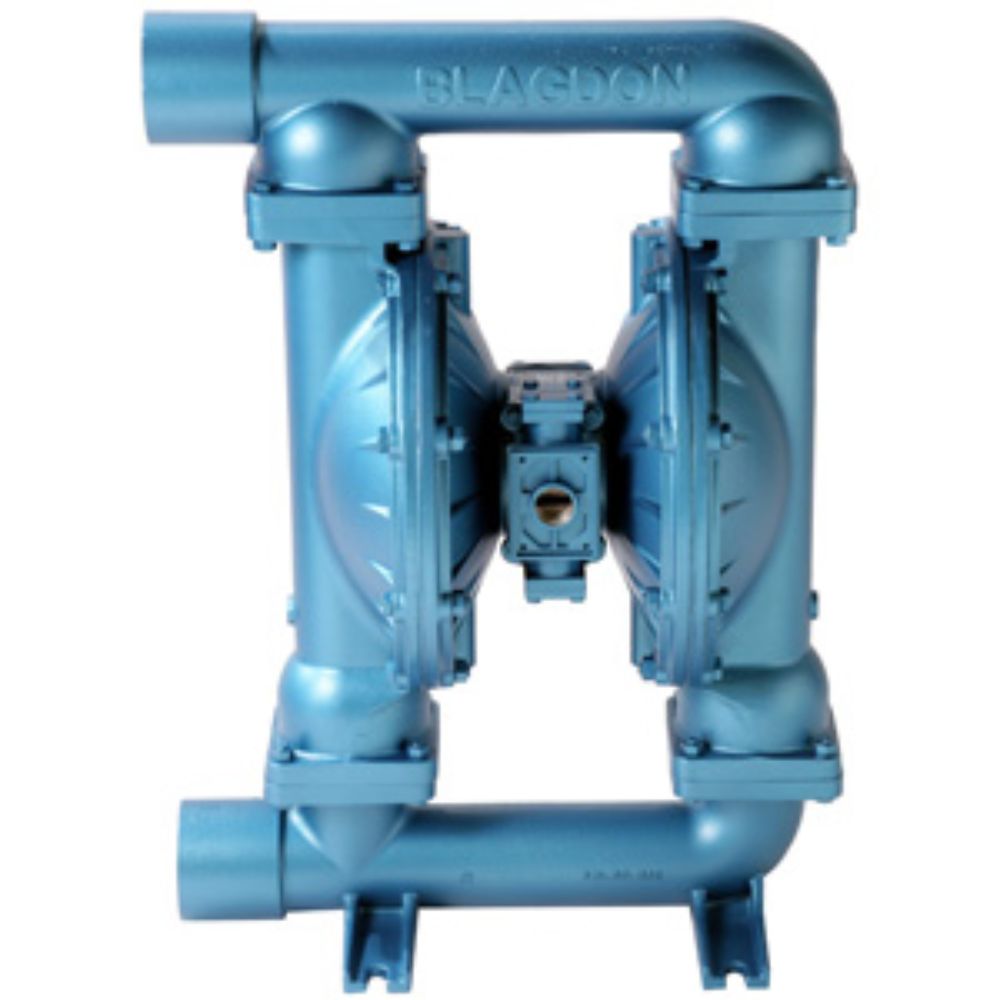

X25 Metallic

  • Bottom discharge ported for efficient solids handling
  • Air valve will not stall in mid-position
  • Air valve designed for in-line maintenance
  • Pressures to 8.6 bar (125 PSI)
  • Bolted construction for greater integrity
  • Flap Valve pump for line size solids handling

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

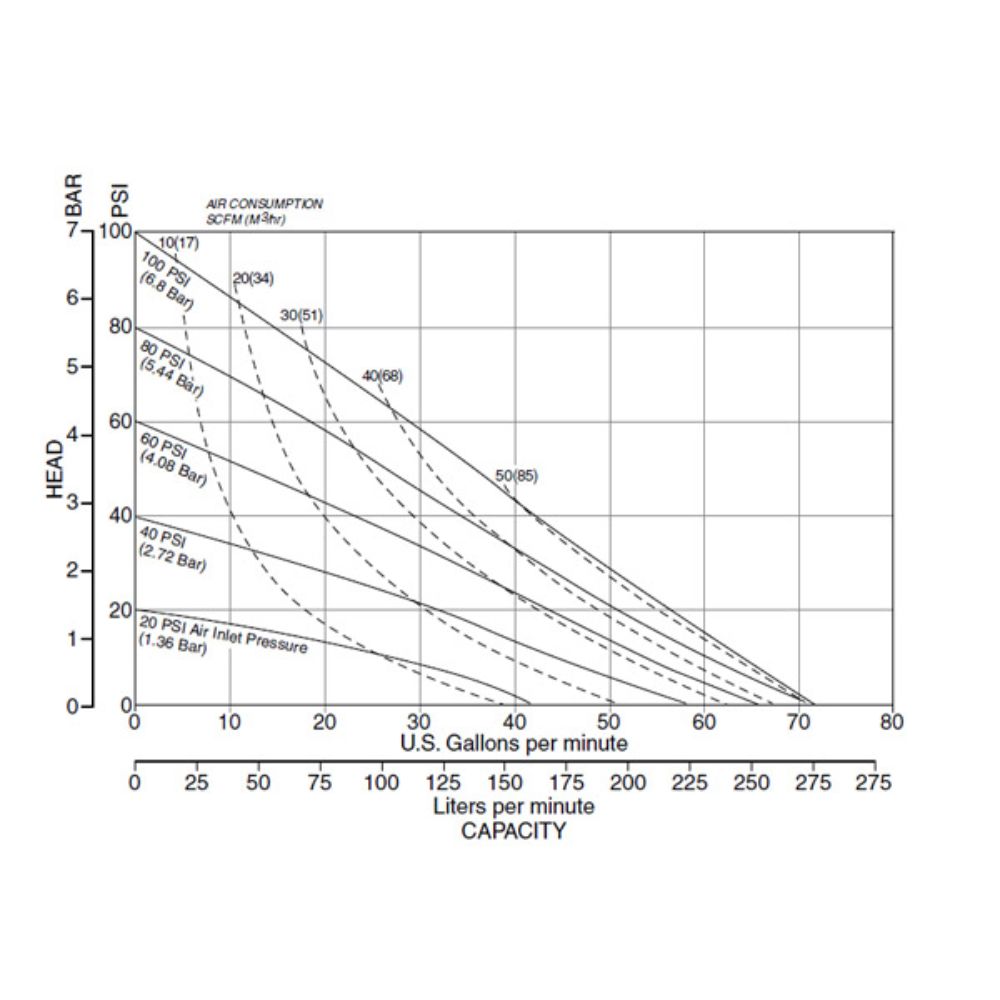

  • Maximum Delivery 265 ltrs/min (70 gal/min)
  • Max. Working Pressure 8.6 bar (125 PSI)
  • Max. Solid Particle Size 25 mm. (0.98″)
  • Air Inlet 1/2″ NPT
  • Temperature Limits Determined by Elastomers
  • Suction Lift (Dry) 5.8 metres (19 feet)
  • Fluid Inlet / Outlet 1″ BSP Tapered / NPT
  • Installation Surface Mounted
  • Accessories Included Exhaust Air Silencer
  • Shipping Weight
    21 kg. (46.3 lbs) aluminium
    34 kg. (75 lbs) cast iron
    36 kg. (79.4 lbs) stainless steel

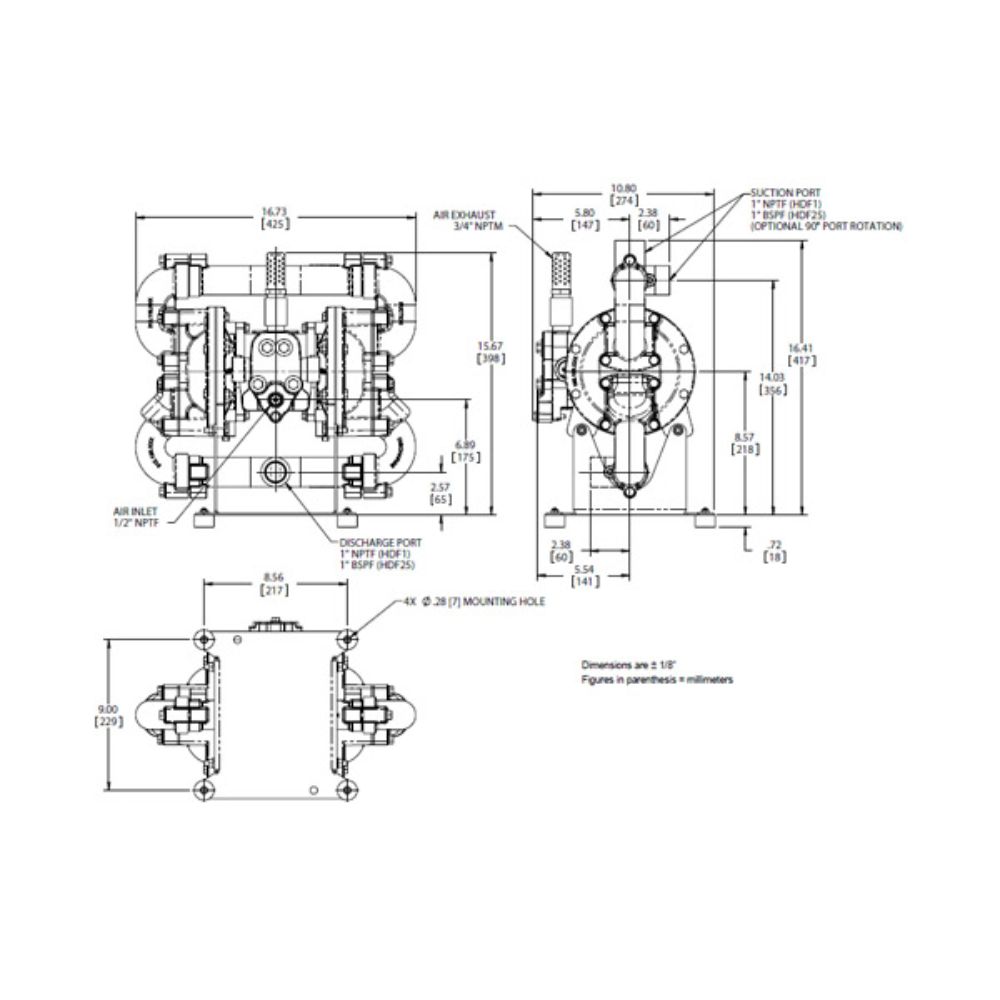

  • Shipping Dimensions
    381 x 457 x 482 mm
    15″ x 18″ x 19″
