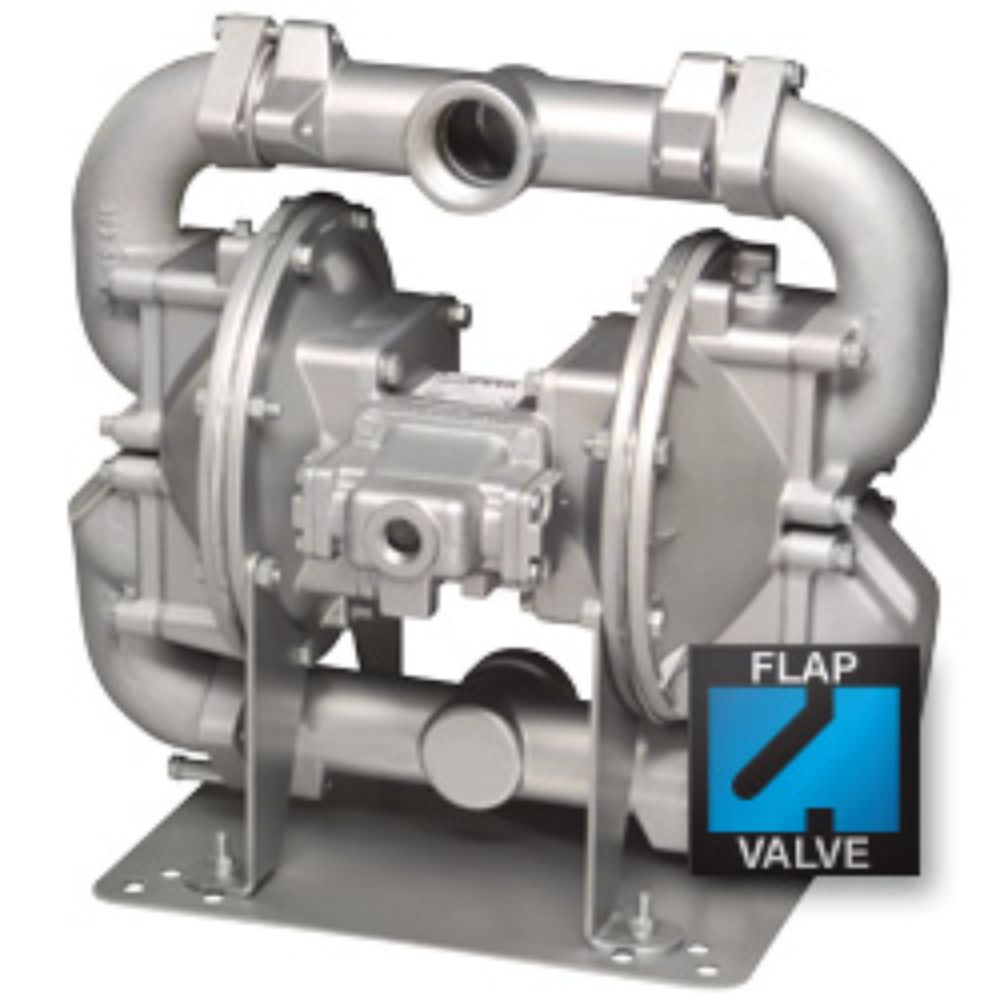

X75 Metallic
X75 Metallic - Image 2
X75 Metallic - Image 3

X75 Metallic

  • Bottom discharge ported for efficient solids handling
  • Air valve will not stall in mid-position
  • Air valve designed for in-line maintenance
  • Pressures to 8.6 bar (125 PSI)
  • Flow rates up to 998 litres/minute (240 gal/min)
  • Bolted construction for greater integrity
  • Robust construction

Interested in our products? Connect with us easily! Simply scan the QR code or click the link to reach us on Line. We’re here to help with any questions or orders!

QR Code
Category:

Specifications

  • Maximum Delivery 998 ltrs/min (264 gal/min)
  • Max. Working Pressure 8.6 bar (125 PSI)
  • Max. Solid Particle Size 75 mm. (3″)
  • Air Inlet 1/2″ NPT
  • Temperature Limits Determined by Elastomers
  • Suction Lift (Dry) 5.5 metres (18 feet)
  • Fluid Inlet / Outlet 3″ ANSI flange
  • Installation Surface mounted
  • Accessories Included Exhaust Air Silencer
  • Shipping Weight 92 kg. (202.8 lbs) stainless steel
  • Shipping Dimensions 533 x 965 x 939 mm 21″ x 38″ x 37″
