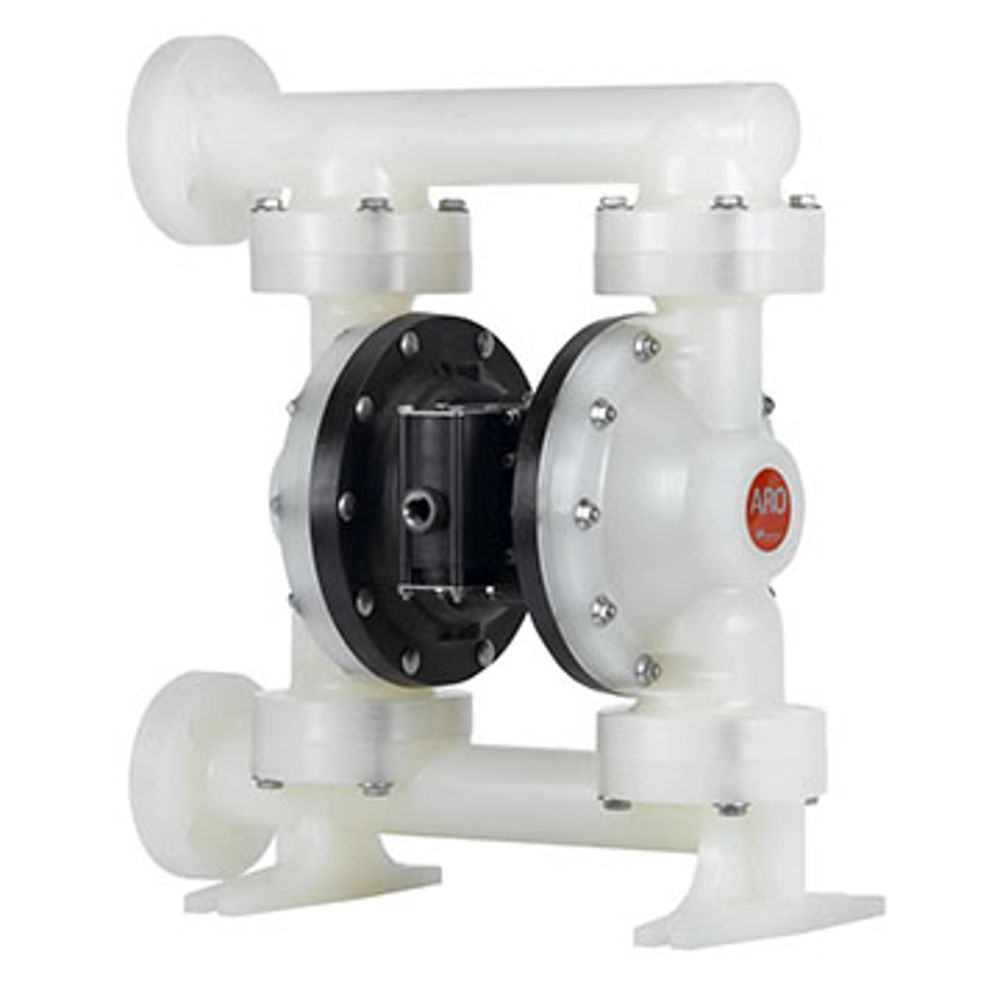

ARO 1-1/2” non-metallic diaphragm pumps are frequently used in transfer, filling, recirculation and supply in Chemical, Industrial and Water/Wastewater treatment markets. Our 1-1/2” models achieve flow rates of up to 123.1 GPM (465.9 LPM) and also offer a diverse selection of material and porting configurations.
Available with Long-life PTFE diaphragms.
Features
The Ultimate in chemical resistant pump design.
Best ‘Total Cost of Ownership’ in the industry.
Efficiency – Simul-Shift™ valve provides ultra-positive, reliable shift signal
Reliability – ARO’s patented ‘Unbalanced’ air valve ensures no-stall operation
Versatility – Broad range in materials of construction for optimum fluid compatibility
Environmentally Sound – Bolted construction for leak-free fluid handling and ribless design to eliminate cracking
Serviceability – Easier service through modular design
Accessories
- 66084-1 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
- 67237 Diaphragm Failure Detection (DFD)
- 67350 Cycle Counter Kit
- 67341-E15N Flange Connection Kit (side flange)
- 67341-C15N Flange Connection Kit (center flange)
- 637389 Air Section Service Kit
- 637391-XX Fluid Section Service Kit
Pump Casing Materials
- PVDF (Kynar)
- Polypropylene
Diaphragm Materials
- LongLife PTFE
- Santoprene
- Hytrel
- Nitrile
- Medical Grade Santoprene
- PTFE w/ Santoprene backer
- Viton
Specifications
Ratio: 1:1
Maximum GPM (LPM): 123 (465)
Displacement per cycle Gallons (Liters): 0.617 (2.34)
Air Inlet (Female): 1/2 – 14 N.P.T.
Fluid Inlet/Outlet: 1-1/2” A.N.S.I./DIN flange (side or center)
Max. operating pressure psi (bar): 120 (8.3)
Suspended solids max. dia. in. (mm): 1/4” (6.4)
Weight lbs (kg):
Polypropylene, Side Ported 42.6 (19.3)
PVDF, Side Ported 63.9 (29)
Polypropylene, Center Ported 42.3 (19.2)
PVDF, Center Ported 55.9 (25.3)
Maximum dry suction lift ft (m) : 14 (4.2)
Sound Level: 70 PSI 60 Cycles/Min 81.0 db(A)
Muffler Included: 93139
