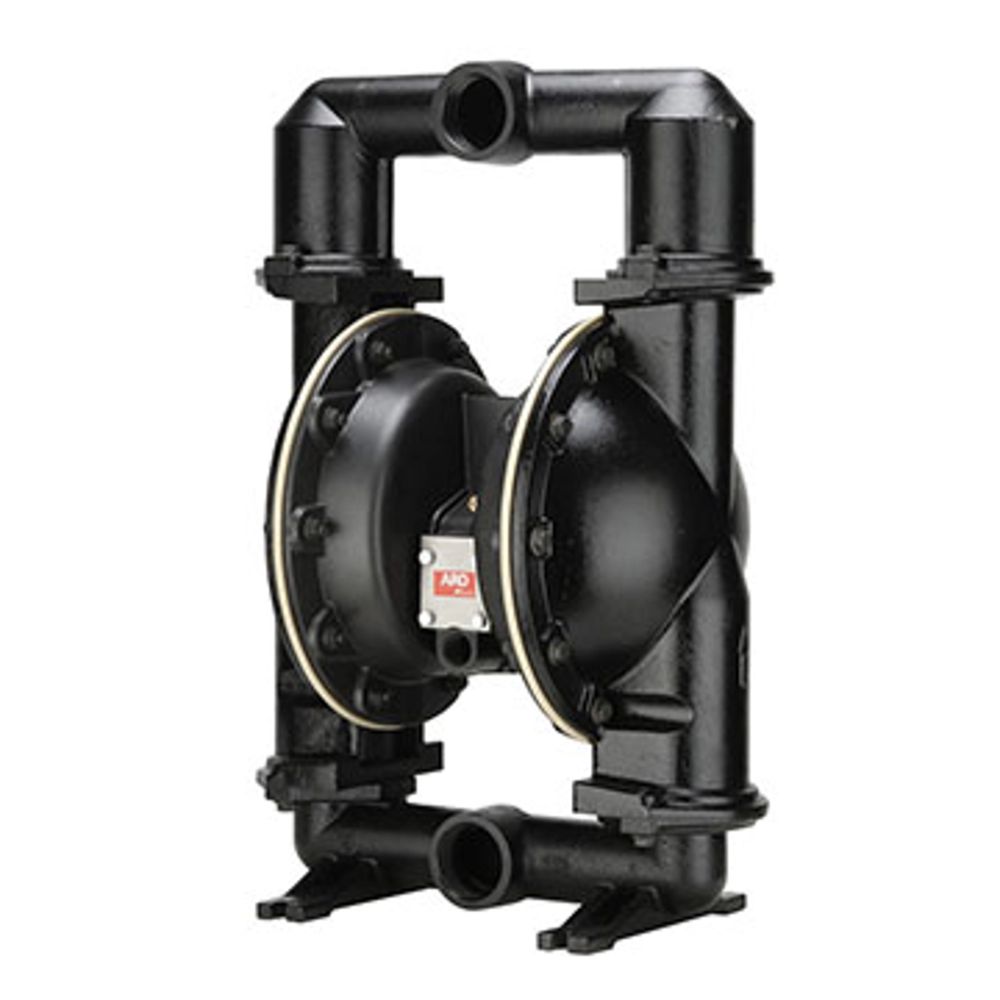

The ARO diaphragm pump is known for its high-volume output, even at low air pressure. It offers many material options, so users can choose the best fit for their needs.
A key feature of ARO pumps is their stall-resistant design. This design allows for smooth operation without interruptions. The pumps have a modular air motor and fluid sections, which improve efficiency and make maintenance easier. Air-operated double diaphragm pumps work by using pressure differences in the air chambers. This creates suction and generates fluid pressure. This smart design, along with valve checks, ensures a steady flow of fluid.
When air pressure is applied, the pump starts cycling and continuously pumps to meet system demand. This process builds and keeps line pressure. The pump stops cycling when the maximum line pressure is reached, usually when the dispensing device is closed. However, it will start pumping again as soon as there is demand, ensuring smooth operation.
Specifications
Ratio: 1:1
Maximum Flow: 172-g.p.m. (651-l.p.m.
Displacement per cycle: 1.4-Gallons (5.3-Liters)
Air Inlet: (Female) 3/4 – 14 N.P.T.F. – 2
Fluid Inlet/Outlet: 2 – 11-1/2 N.P.T.F. – 1 / Rp 2(2 – 11 BSP, parallel)
Max. operating pressure: 120-psi (8.3-bar)
Suspended solids maximum dia.: 1/4-inch (6.4-mm)
Weight: lbs (kg)
6662X0-XXX-C 65.2 (29.6)
6662X1-XXX-C 129.9 (58.9)
6662X2-XXX-C 124.3 (58.9)
Maximum dry suction lift: ft (m) 27.2 (8.3)
Sound Level: 70 PSI 60 Cycles/Min 85.3 db(A)
