AIR INLET
- 1/2″ FNPT
LIQUID INLET
- 25 mm (1″)
LIQUID DISCHARGE
- 25 mm (1″)
CONNECTION TYPE
- NPT/BSPT (Threaded)
- DIN/ANSI (Flanged)
MAX SUCTION LIFT CAPABILITY
- Rubber – 6.9 m (22.7′) Dry, 9.0 m (29.5′) Wet
- TPE – 5.9 m (19.3′) Dry, 9.0 m (29.5′) Wet
- Full-Stroke PTFE – 5.2 m (17.0′) Dry, 9.0 m (29.5′) Wet
MAX FLOW RATE
- Rubber – 204 lpm (54 gpm)
- TPE – 212 lpm (56 gpm)
- Full-Stroke PTFE – 197 lpm (52 gpm)
MAX PRESSURE
- 8.6 bar (125 psi)
MAX DIAMETER SOLIDS
- 6.4 mm (1/4″)
DISPLACEMENT PER STROKE *
-
- Rubber – 0.30 L (0.08 gal)
- TPE – 0.26 L (0.07 gal)
- Full-Stroke PTFE – 0.30 L (0.08 gal)
* 1 cycle = 2 strokes
Features and Benefits

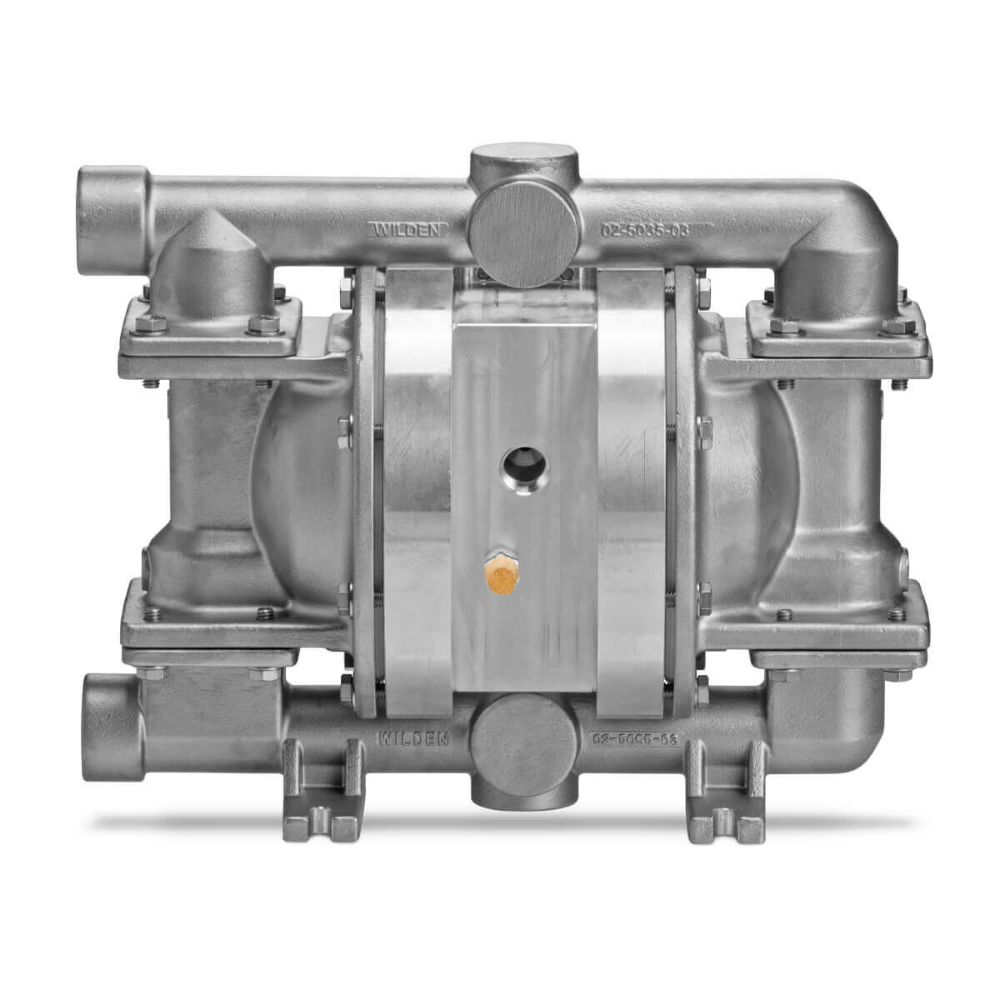

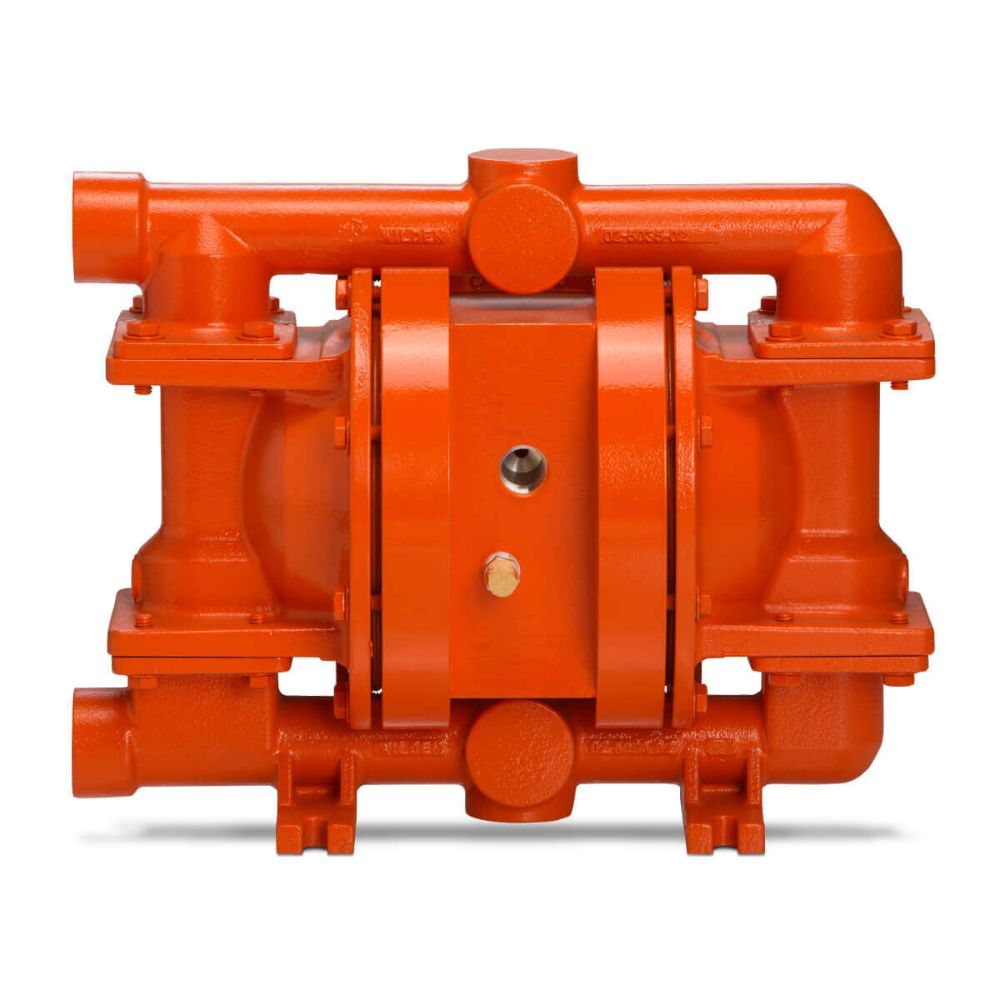

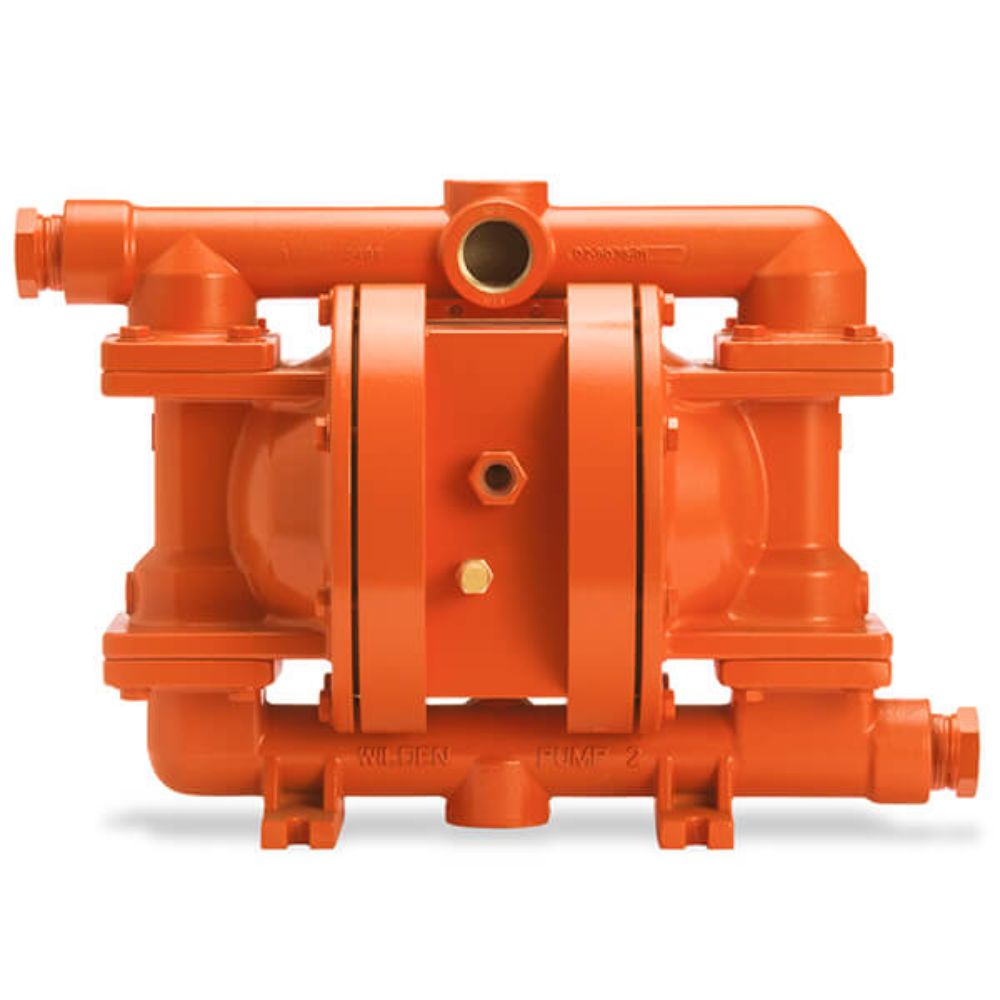

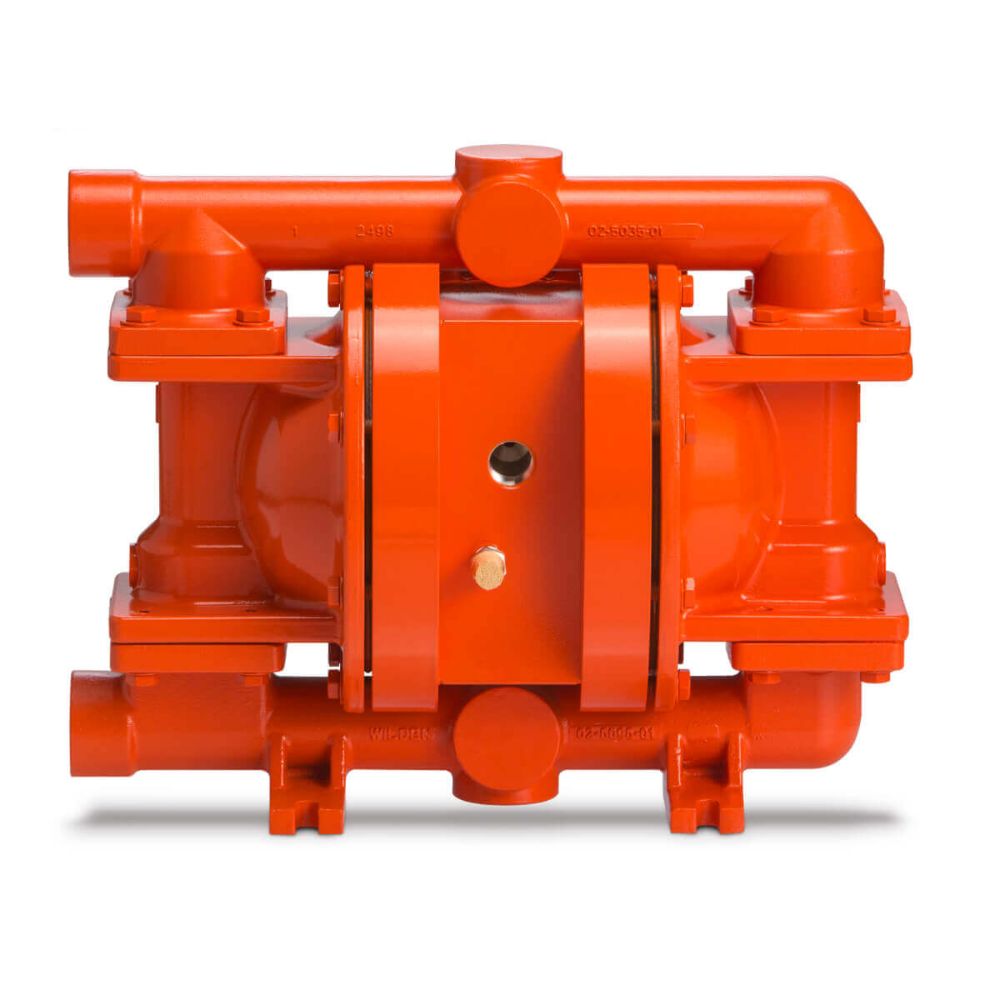

The Wilden® bolted metal pump, also known as FIT, sets the new standard for pump performance. Featuring an enhanced flow path design, Wilden’s bolted-construction pumps offer improved flow rates (up to 35% over competitive models) as well as improved diaphragm life. Wilden’s bolted pumps are also designed for superior containment and have the exact bolt down footprint and inlet/discharge connections as Wilden clamped pumps for easy replacement.
- NPT or BSPT threaded inlet/discharge liquid connections (PS220)

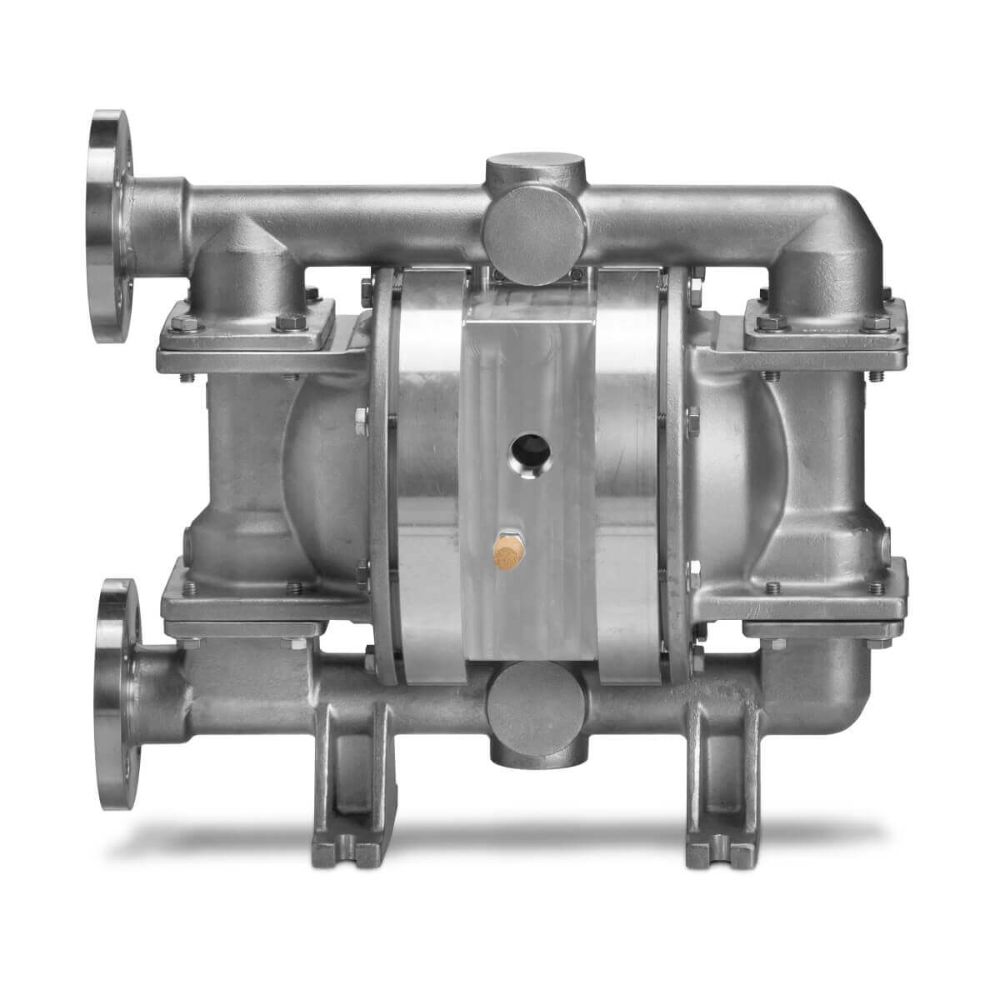

- DIN or ANSI flanged inlet/discharge liquid connections (PS230) that don’t require welding or nipple attachment
- Featuring the energy-efficient Pro-Flo® SHIFT ADS
- Greater flow – more gallons pumped per SCFM
- Reduced air consumption and kilowatt usage
- Largest chemical compatibilities
- Portable and submersible
- Large-solids passage
- High suction lift
- Ease of operation and maintenance
- Flexible internal adjustment on manifolds
- Increased on/off reliability
- Longest Mean Time Between Repair (MTBR)
