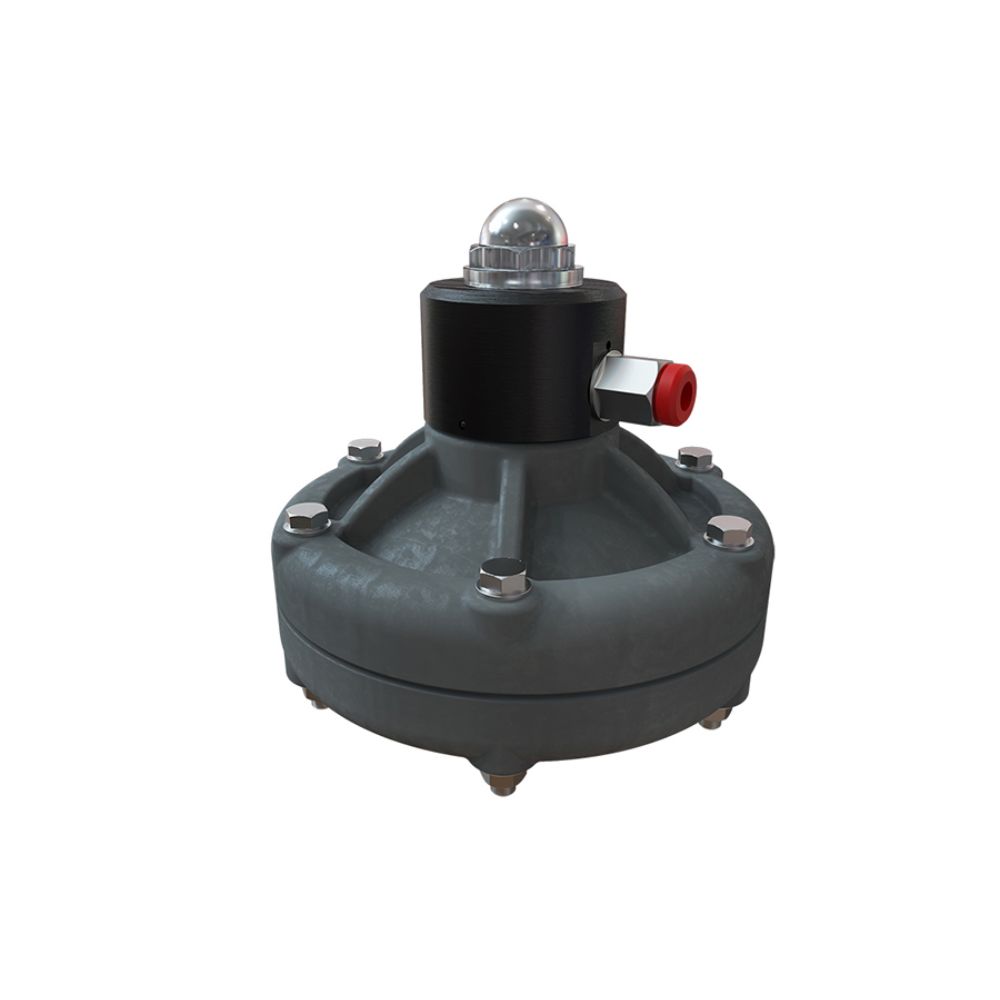

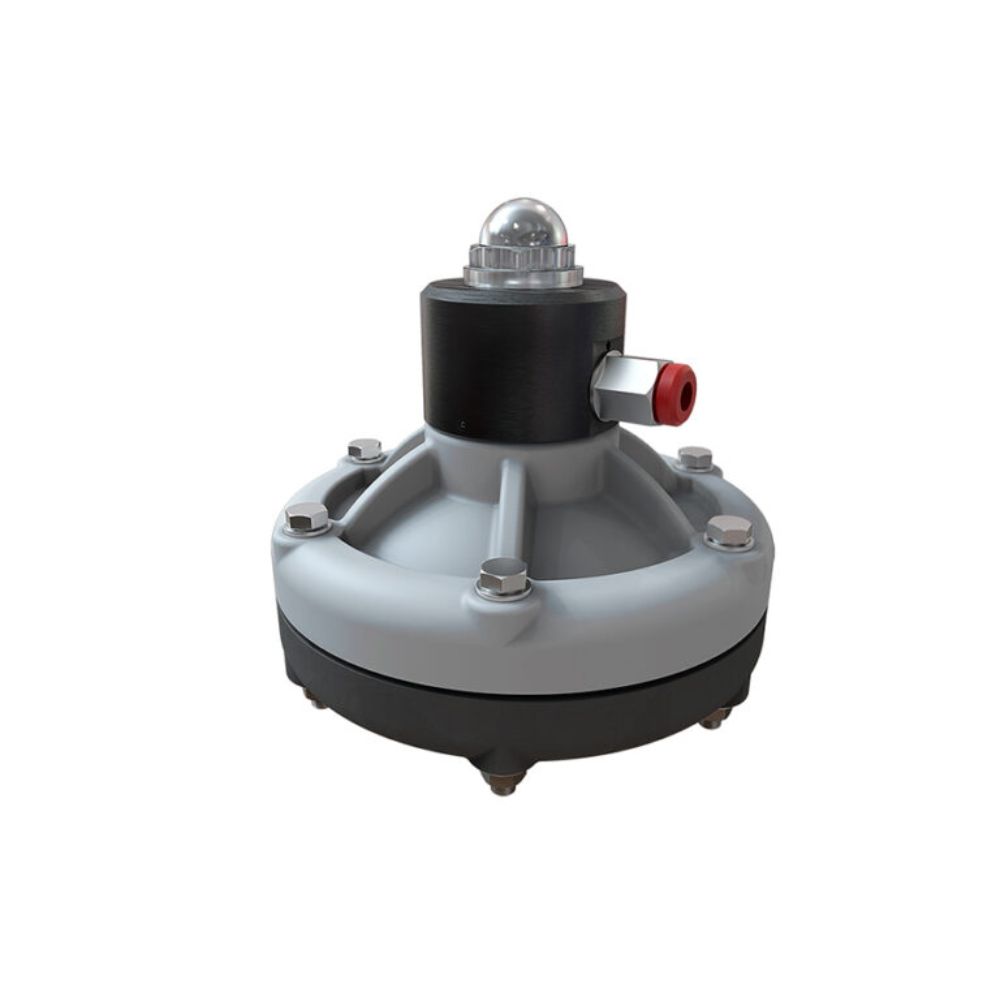

Equaflux 51

ATEX ZONE 2 – STANDARD ON ALL MODELS

II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc

ATEX ZONE 1 – AVAILABLE ON REQUEST

II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db

Technical Specifications

Material (half-casing in contact with the fluid): PP

Product fitting	G 3/4″ f
Air fitting	Ø 6 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Midgetbox, Cubic 15, Boxer 7, Boxer 15, Microboxer
Weight	0,5 kg
Operating temperature	from +3°C to +65°C
Dimension (mm)	121 x 117

Material (half-casing in contact with the fluid): PP + CF

Product fitting	G 3/4″ f
Air fitting	Ø 6 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Midgetbox, Cubic 15, Boxer 7, Boxer 15, Microboxer
Weight	0,5 kg
Operating temperature	from +3°C to +65°C
Dimension (mm)	121 x 117

Material (half-casing in contact with the fluid): PVDF

Product fitting	G 3/4″ f
Air fitting	Ø 6 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Cubic 15, Boxer 7, Boxer 15, Microboxer
Weight	0,5 kg
Operating temperature	from +3°C to +95°C
Dimension (mm)	121 x 117

Material (half-casing in contact with the fluid): PPS – V

Available in the following materials

PP PP+CF PVDF PPS-V AISI 316 L

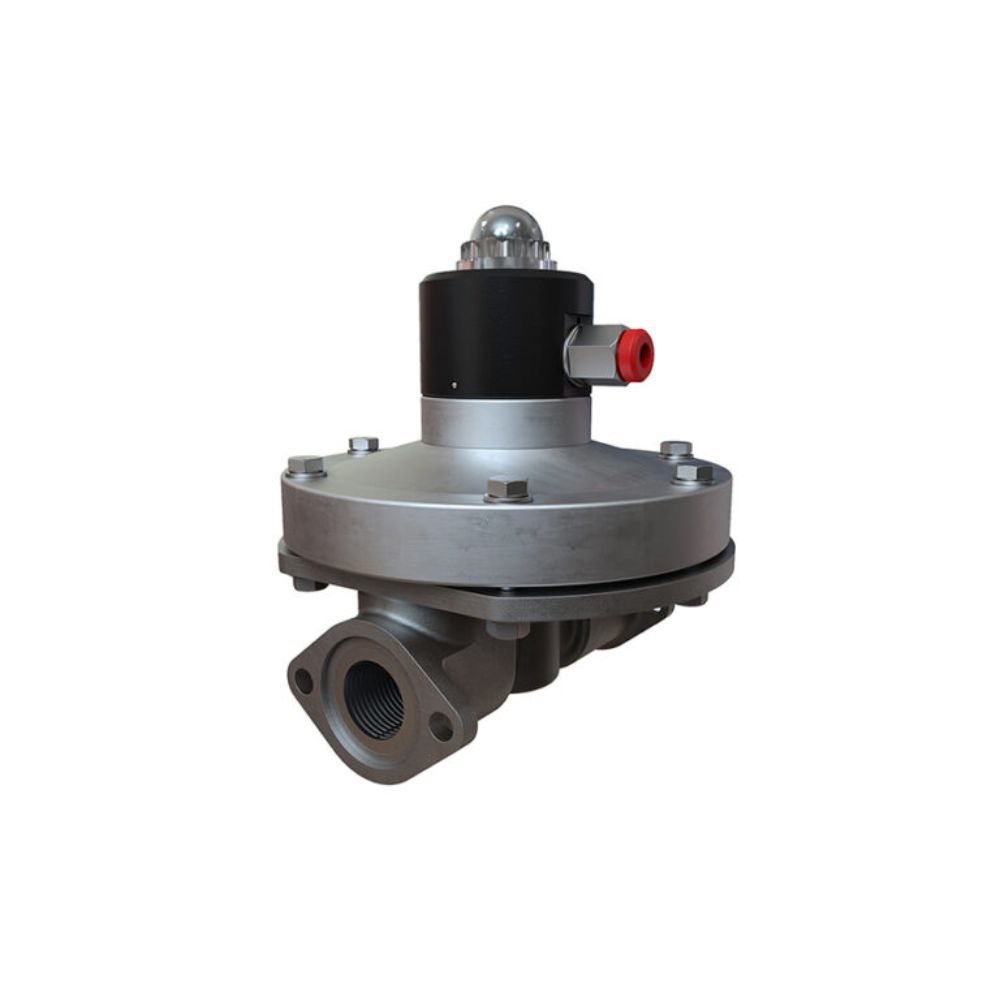

Material (half-casing in contact with the fluid): AISI 316 L

Air side half-casing material

– PP
– PP+CF
– ALUMINUM

Diaphragm materials

– NBR
– EPDM
– Hytrel
– Santoprene
– PTFE

Caps materials

– PP (with glass additive)
– PP conductive (with carbon additive)
– PVDF
– PPS-V
– ECTFE natural
– AISI 316
– Aluminium
