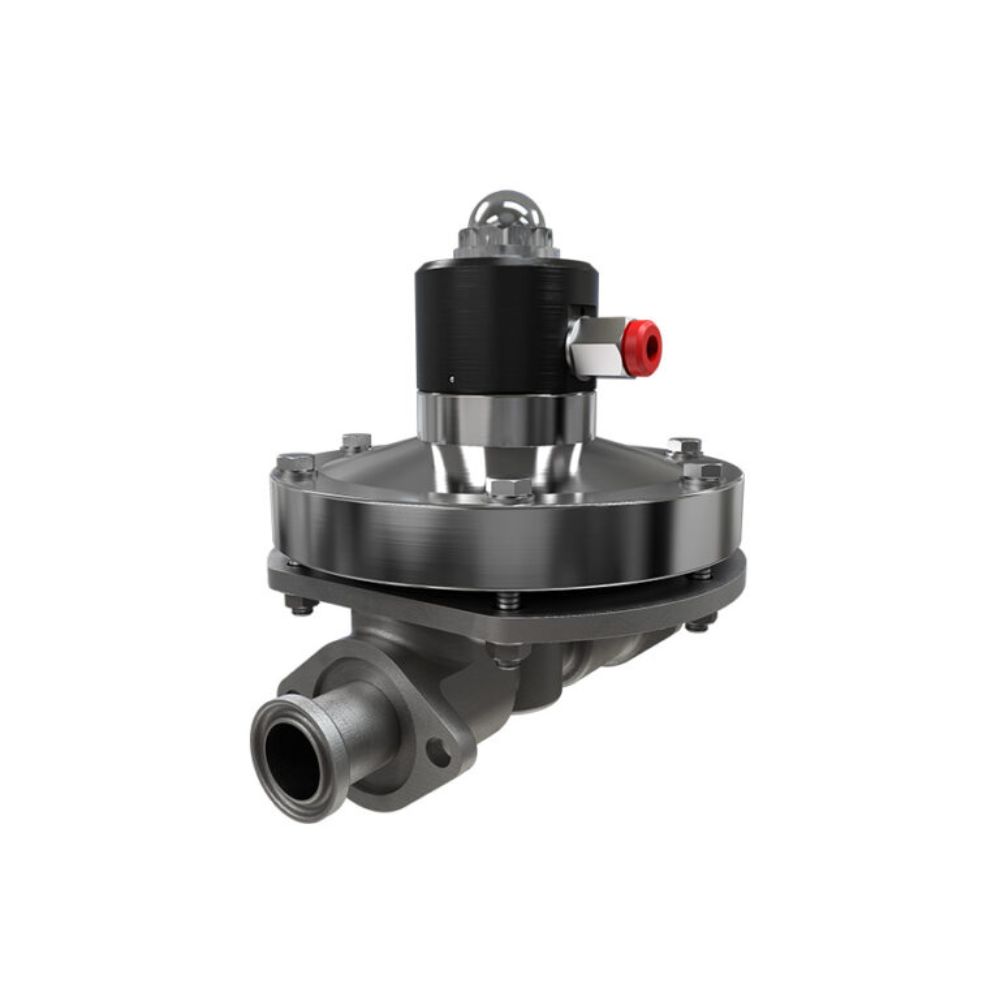

FDA Equaflux 51

ATEX ZONE 2 – STANDARD ON ALL MODELS

II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc

ATEX ZONE 1 – AVAILABLE ON REQUEST

II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db

Technical Specifications

Material (half-casing in contact with the fluid): AISI 316 L

Product fitting	3/4″ CLAMP (DN 19) – BS – British Standard 4825 1″ CLAMP (DN 25) – BS – British Standard 4825
Air fitting	Ø 6 mm
Operating pressure	Min 2 Bar – Max 8 Bar
Application	Boxer 7, Boxer 15, Microboxer
Weight	1,33 kg
Operating temperature	from +3°C to +95°C
Dimension (mm)	133 x 117

Air side half-casing material

– PP

Diaphragm materials

– Hytrel
– PTFE
