Performance
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials
** Attention: average values of the different materials configurations for ball and ball seat.
DATA
Technical Specifications
Technical Specifications
| Suction connections | G 1″1/2 f o DN 40 |
| Delivery connections | G 1″ m o DN 25 |
| Max flow rate * | 6 m3/h |
| Max head * | 7,5 m |
| Viscosity | up to 500 cps |
| Standard open impeller | Ø 85 mm H 9 mm (special versions are available on request for the fluid pumped) |
| Passing solids | Ø max 5 mm |
Construction materials (casing and manifolds), net weight and temperature
| Version | Weight | Min | Max |
| PP (with glass additive) | 1,7 kg | 0° C | 70° C |
| PVDF (with carbon additive) | 2,2 kg | -10° C | 100° C |
Standard electric motors
- Kw 0,37 – HP 0,5
- Box B3+B14
- RPM 2900
- Aluminium / cast iron motor (the motor weight may vary, contact the sales office)
- THREEPHASE 230/400 V – 50/60 Hz – 2 pole – Efficiency class IE1 – Protection rating IP55 – Ambient temperature -30°C + 45°C

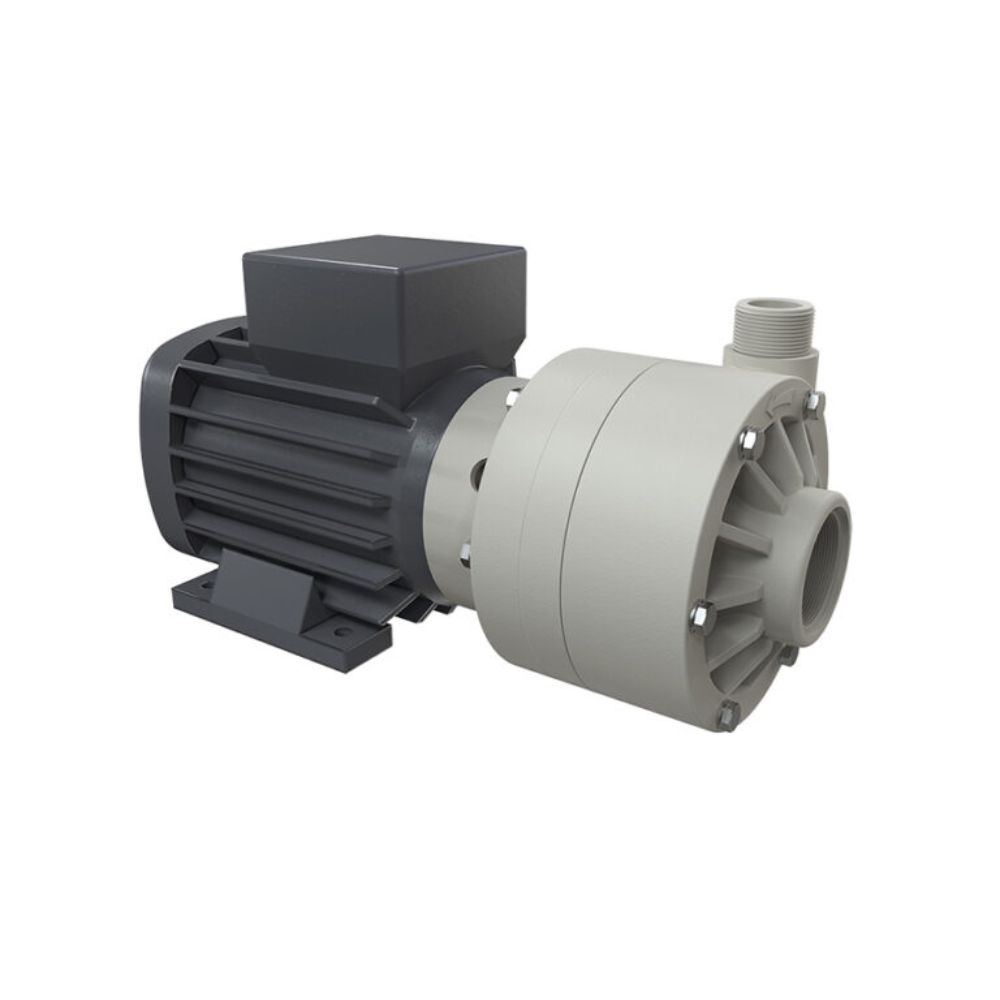

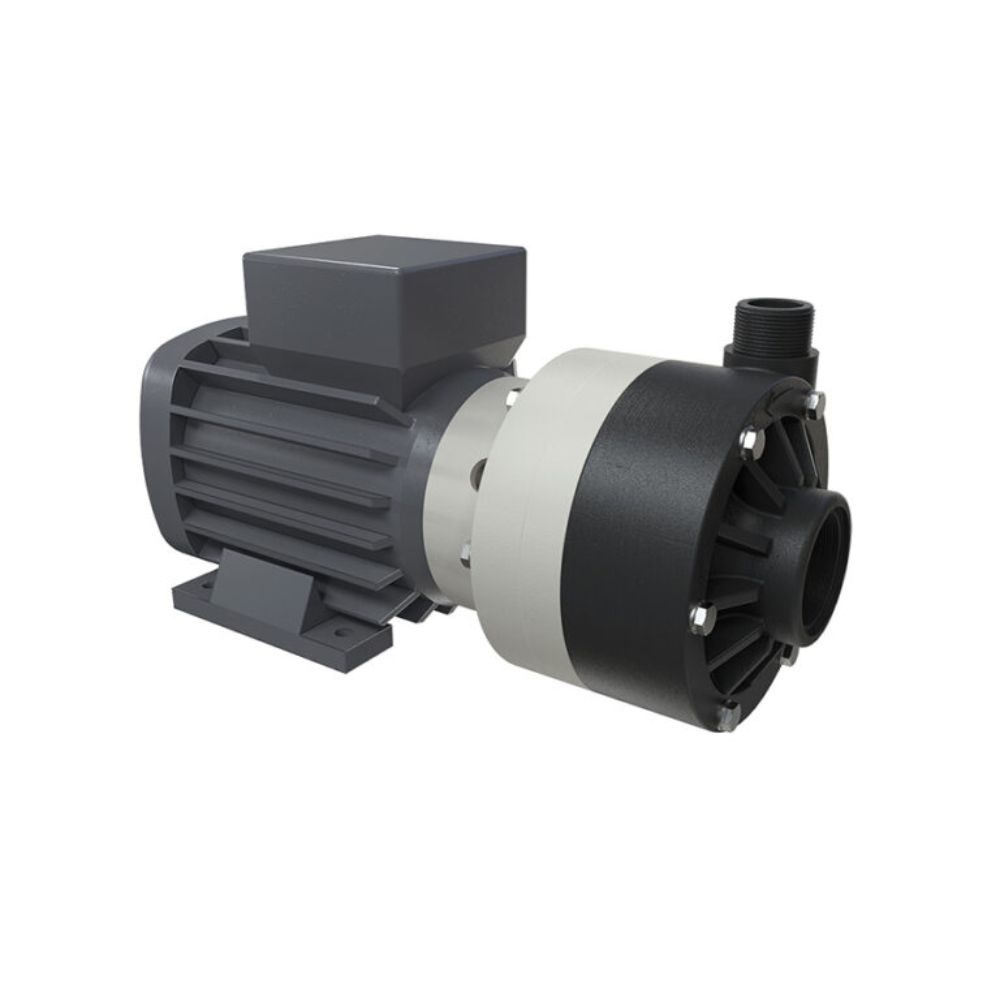

PP PVDF
Electric motors available on request
– SINGLEPHASE
– ATEX
– EPDM
– VITON®
- Protective case in polyurethane foam contained in a wooden case – 50 x 25 x 35 cm – weight 7 kg
The weight refers only to the packaging without the pump inside
- FLANGE KIT (DIN standard – ANSI on request):
– KITFLANGMB080P (PP pump)
– KITFLANGMB080F (PVDF pump) - PP or PVDF basket strainers
- Bellows mechanical seal (new generation with “Self-locking” system)
Spring Aisi 304 – Sealing ring in SILICON CARBIDE + CERAMIC / SILICON CARBIDE + SILICON CARBIDE - Lip seal: VITON or EPDM
