ATEX ZONE 2 – STANDARD ON ALL MODELS
II 3G Ex h IIB T4 Gc
II 3D Ex h IIIB T135°C Dc
ATEX ZONE 1 – AVAILABLE ON REQUEST
II 2G Ex h lib T4 Gb
II 2D Ex h IIIB T135°C Db
Performance
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials
** Attention: average values of the different materials configurations for ball and ball seat.
Technical Specifications
Head / Flow rate guaranteed in compliance with ISO 9906
| Suction/delivery connections | G 1/4″ f |
| Air fitting | G 1/8″ f |
| Max flow rate * | 6 l/min |
| Max supply air pressure | 8 bar |
| Max head * | 80 m |
| Max negative suction head – dry-running ** | 3 m |
| Max negative suction head – pump primed | 9,5 m |
| Diameter Max suspended solids | 0 mm |
| Noise level ** | 60 dB |
| Volume per stroke | 3,2 cc |
PP
| Version | Weight | Min | Max |

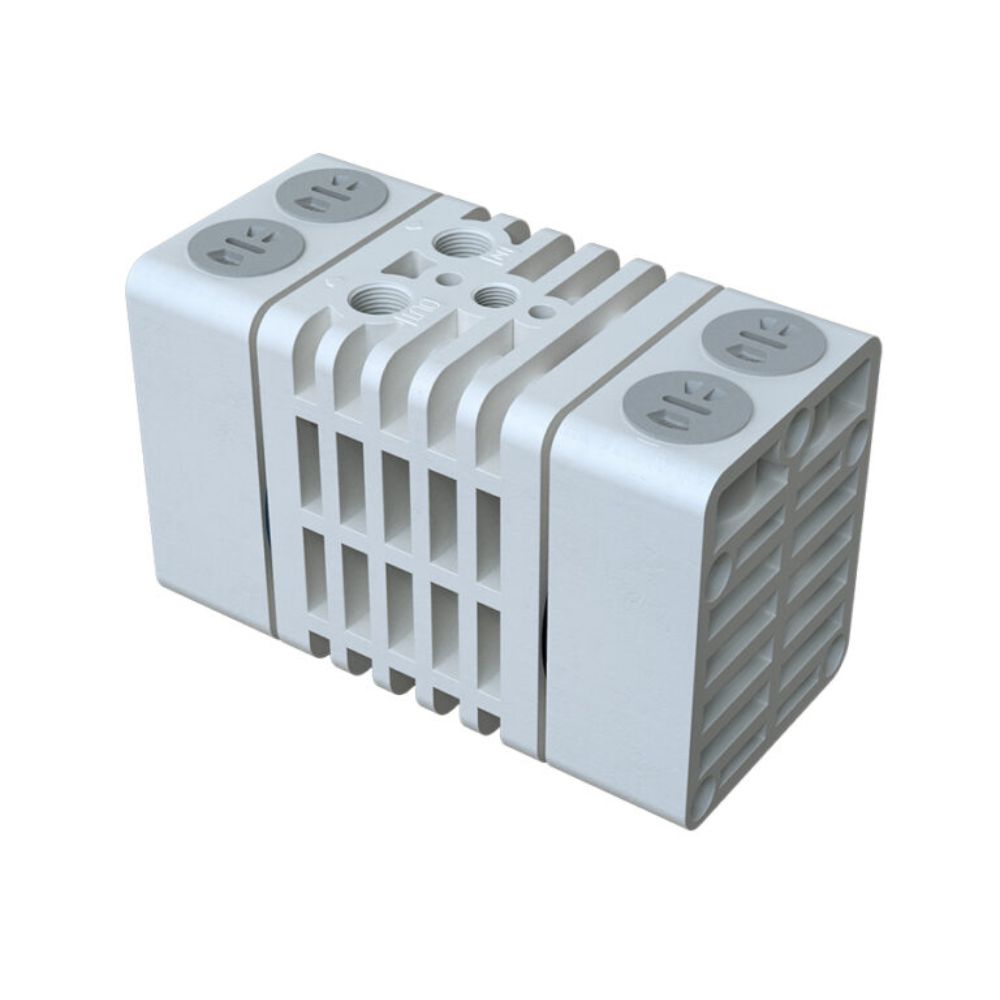

| PP (with glass additive) | 0,52 kg | 3° C | 65° C |

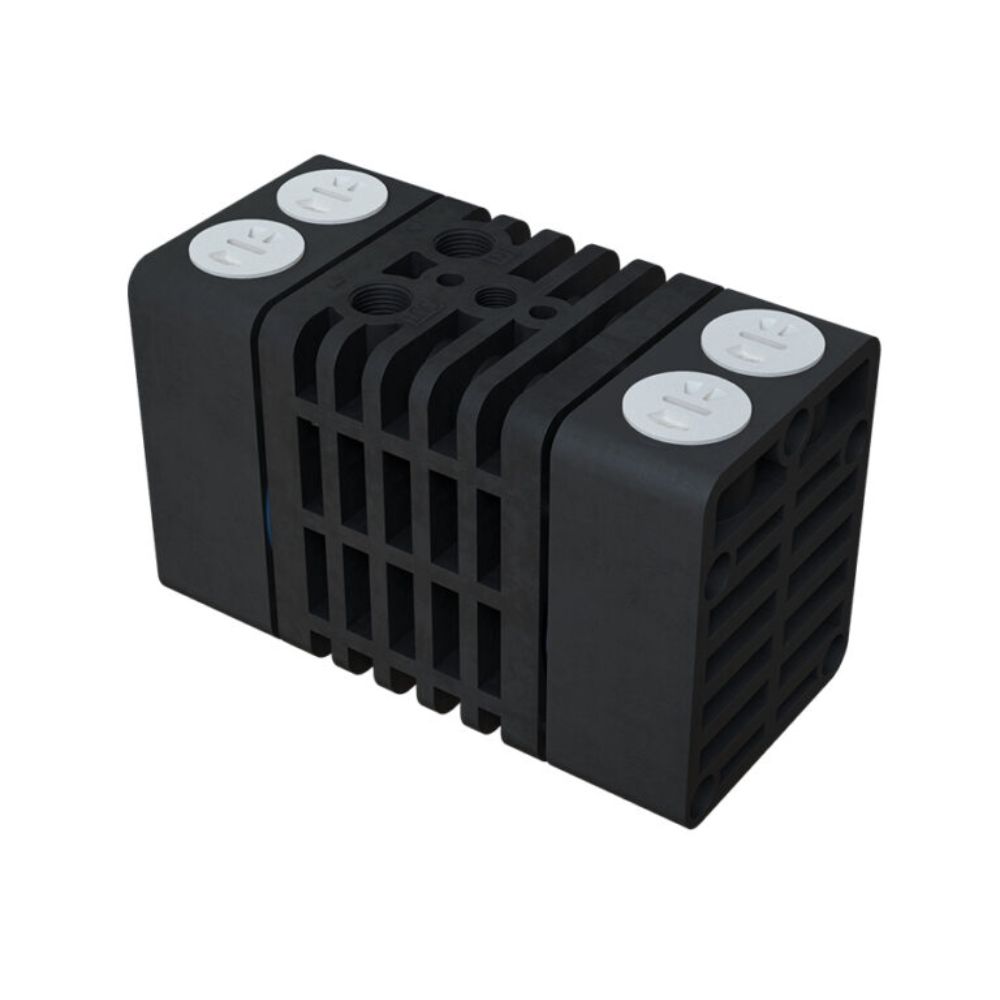

| PP conductive (with carbon additive) | 0,52 kg | 3° C | 65° C |
| Maximum Dimensions | Plastic |
| Height | 75 mm |
| Width | 121 mm |
| Depth | 60 mm |
